16GB RAM Max (DDR2-1066 SDRAM)
4 16x PCIe 2.0, 2 PCI 2.2 Slots
| Component | Secondary Workstation |
|---|---|
| Picture(s) |
|
| Benchmark Results | Wintune Results - AMD Phenom II X4 940 - 6-16-2009 |
| CPUBench 2003 Results - AMD Phenom II X4 940 - 6-23-2009 | |
| Sandra Pro XII Results - AMD Phenom II X4 940 - 6-24-2009 | |
| Atto Disk Results - AMD Phenom II X4 940 - 6-25-2009 | |

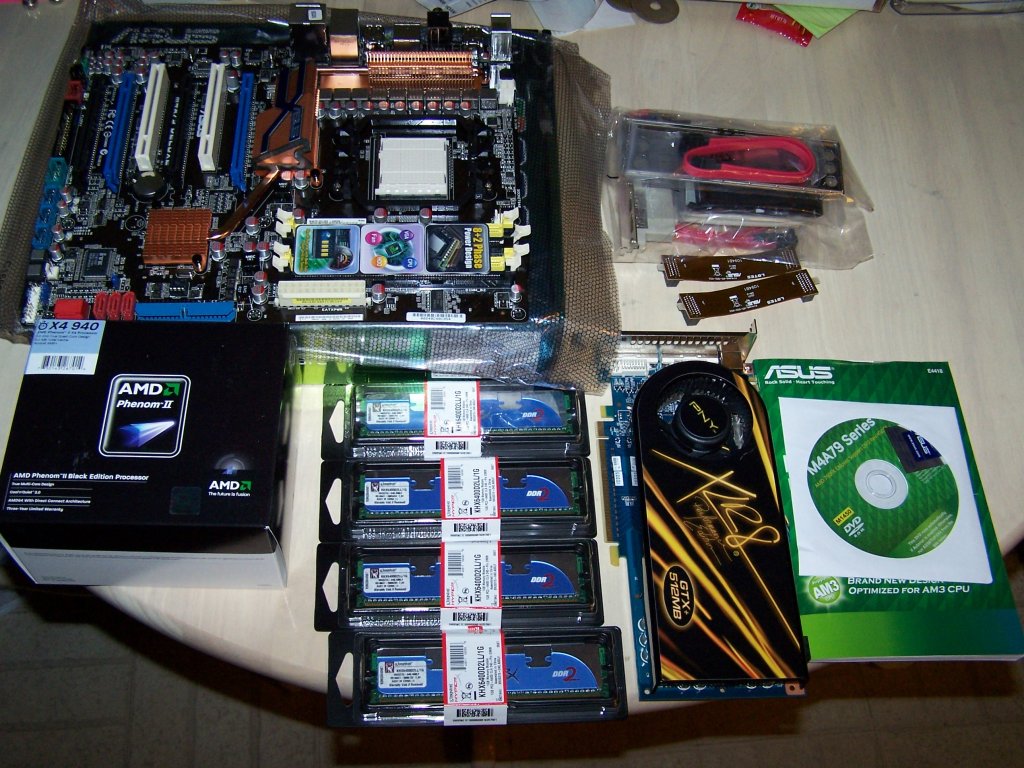

| CPU(s) | AMD Athlon Phenom II 940 Black, 3 GHz, 4x 128K L1, 4 x 512K L2, 6MB L3 |
| CPU Type | Socket AM3 |
| Motherboard | Asus M4A79 Deluxe |
| MB Features | AMD 790FX Chipset
16GB RAM Max (DDR2-1066 SDRAM) 4 16x PCIe 2.0, 2 PCI 2.2 Slots |
| RAM | 4GB DDR2-800 SDRAM (Kingston HyperX, KHX6400D2LL, 4 CAS, 4-4-4-12) |
| Controller(s) | Built-in SATA-II (RAID 0 / 1 / 5 / 10) w/5 Internal & 1 eSATA Ports |
| Built-in Ultra ATA-100 | |
| Hard Drives | 2 x Western Digital SE16 WD2500AAKS 250GB SATA-II w/16MB Cache |
| ROM Drive(s) | Teac CD-532E-A 32x ATAPI Black CDROM w/256K cache |
| Pioneer DVR-117D 12x/8x/6x/12x/20x/20x/16x DVD-R DL/DVD+RW/DVD-RW/DVDRAM/DVD+R/DVD-R/DVDROM / 40x/32x/40x CD-R/CD-RW/CDROM ATAPI w/2MB Cache | |
| Media | Black 3.5" 1.44MB Floppy |
| Primary Graphics Adapter | PNY GeForce 9800GTX+ PCIe 2.0 16x w/512MB GDDR3 SDRAM |
| Network Card(s) | Integrated Realtek 8112 10/100/1000 |
| USB Adapter | Integrated USB 2.0 PCI w/up to 12 Connectors |
| FireWire Adapter | Integrated VIA VT6315N IEEE 1394a w/2 Connectors |
| Monitor | Asus VE249H 24" LED, 1920x1080 .27675mm, 5ms, 1000:1 |
| Sound card(s) | Integrated RealTek ALC1200 7.1-channel PCI |
| Pointing Device | Microsoft Trackball Optical Explorer |
| Joystick | Saitek X-52 Joystick/Throttle Combo |
| Power Supply | ePower Zumax ZU-550W |
| UPS | APC Back-UPS Pro 1100 |
